Jinko Solar | PV Modules

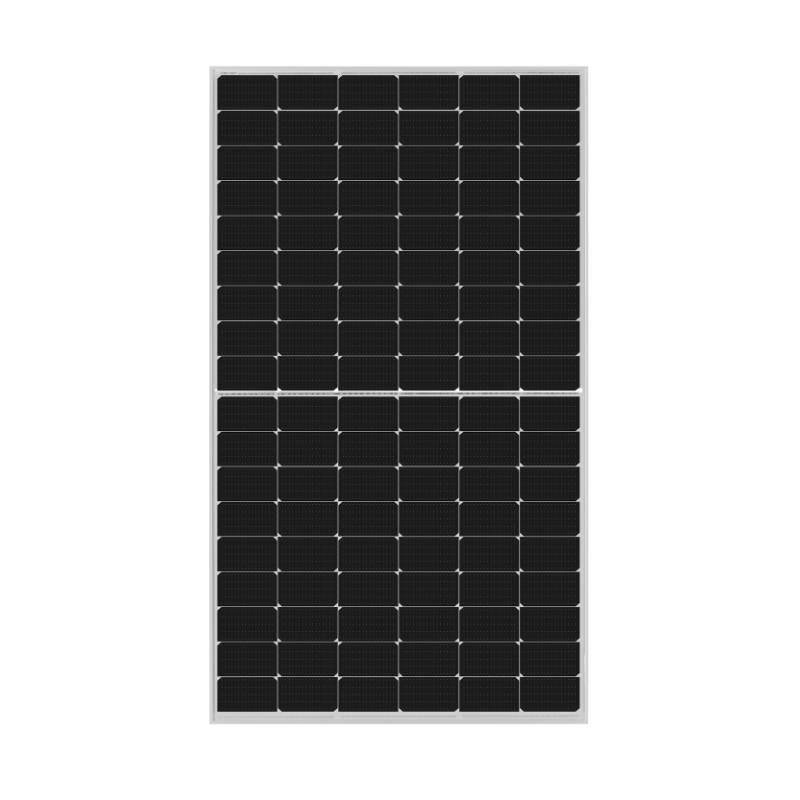

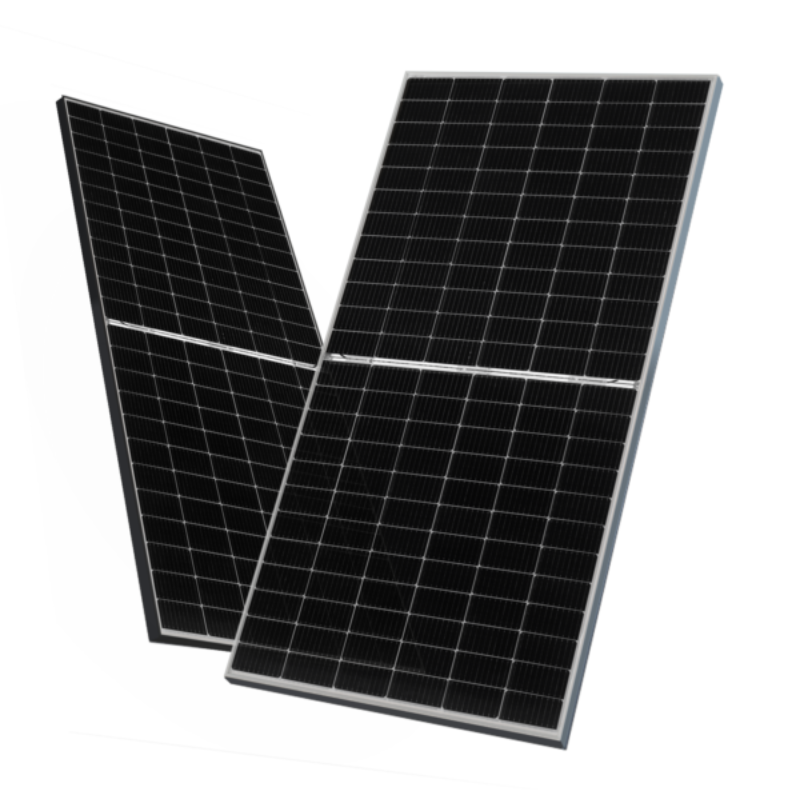

Jinko Tiger Neo N type 72HL4-(V) 575W Mono-Facial Module

Jinko Tiger Neo N type 72HL4-(V) 575W Mono-Facial Module

The Jinko Tiger Neo N-type 72HL4-(V) 575W Mono-Facial Module is a high-performance solar panel assembled with Smart Multi-Busbar (SMBB) cells, designed for better light trapping and higher efficiency. This premium panel is ideal for various solar applications, offering outstanding efficiency, reliability, and durability.

Key features

  • SMBB technology: The panel features Smart Multi-Busbar technology, which enhances light trapping and current collection, leading to improved module power output and reliability.
  • Hot 2.0 technology: The N-type module with Hot 2.0 technology offers superior reliability and lower Light Induced Degradation (LID) and Light and Elevated Temperature Induced Degradation (LETID).
  • PID resistance: The panel has excellent Anti-Potential Induced Degradation (PID) performance, thanks to an optimised mass-production process and materials control.
  • Enhanced mechanical load: The panel is certified to withstand wind loads of 2400 Pascal and snow loads of 5400 Pascal, ensuring durability in harsh conditions.
  • Durability against extreme conditions: The panel exhibits high resistance to salt mist and ammonia, making it suitable for challenging environmental conditions.

Jinko Solar, a global leader in solar technology, has designed the Tiger Neo N-type 72HL4-(V) 575W Mono-Facial Module with advanced technology and robust construction. The panel's SMBB technology and Hot 2.0 technology reflect Jinko's commitment to delivering innovative and reliable solar solutions for diverse applications.

Specifications

  • Maximum power output (Pmax): 575W
  • Open circuit voltage (Voc): 50.88V
  • Maximum power voltage (Vmp): 42.22V
  • Short circuit current (Isc): 14.39A
  • Maximum Power Current (Imp): 13.62A
  • Module efficiency: 22.26%
  • Dimensions: 2278 x 1134 x 35 mm
  • Weight: 28 kg
  • Power tolerance: 0 ~ +3%
  • Temperature coefficient of Isc: 0.046%/°C

The Jinko Tiger Neo N-type 72HL4-(V) 575W Mono-Facial Module is a top-tier solar panel that offers exceptional efficiency, reliability, and durability. With its advanced SMBB and Hot 2.0 technology, this panel delivers higher output power, lower LCOE, and better mechanical loading tolerance, making it an ideal choice for residential, commercial, and utility-scale solar installations.

View full details
Advance booking from ₦0.00 for In Transit / Unit
Scroll destination

Product Description

The Jinko Tiger Neo N-type 72HL4-(V) 575W Mono-Facial Module is a high-performance solar panel assembled with Smart Multi-Busbar (SMBB) cells, designed for better light trapping and higher efficiency. This premium panel is ideal for various solar applications, offering outstanding efficiency, reliability, and durability.

Key features

  • SMBB technology: The panel features Smart Multi-Busbar technology, which enhances light trapping and current collection, leading to improved module power output and reliability.
  • Hot 2.0 technology: The N-type module with Hot 2.0 technology offers superior reliability and lower Light Induced Degradation (LID) and Light and Elevated Temperature Induced Degradation (LETID).
  • PID resistance: The panel has excellent Anti-Potential Induced Degradation (PID) performance, thanks to an optimised mass-production process and materials control.
  • Enhanced mechanical load: The panel is certified to withstand wind loads of 2400 Pascal and snow loads of 5400 Pascal, ensuring durability in harsh conditions.
  • Durability against extreme conditions: The panel exhibits high resistance to salt mist and ammonia, making it suitable for challenging environmental conditions.

Jinko Solar, a global leader in solar technology, has designed the Tiger Neo N-type 72HL4-(V) 575W Mono-Facial Module with advanced technology and robust construction. The panel's SMBB technology and Hot 2.0 technology reflect Jinko's commitment to delivering innovative and reliable solar solutions for diverse applications.

Specifications

  • Maximum power output (Pmax): 575W
  • Open circuit voltage (Voc): 50.88V
  • Maximum power voltage (Vmp): 42.22V
  • Short circuit current (Isc): 14.39A
  • Maximum Power Current (Imp): 13.62A
  • Module efficiency: 22.26%
  • Dimensions: 2278 x 1134 x 35 mm
  • Weight: 28 kg
  • Power tolerance: 0 ~ +3%
  • Temperature coefficient of Isc: 0.046%/°C

The Jinko Tiger Neo N-type 72HL4-(V) 575W Mono-Facial Module is a top-tier solar panel that offers exceptional efficiency, reliability, and durability. With its advanced SMBB and Hot 2.0 technology, this panel delivers higher output power, lower LCOE, and better mechanical loading tolerance, making it an ideal choice for residential, commercial, and utility-scale solar installations.

Data Sheets

Tiger_Neo_JKM555-575N-72HL4-_V_-F1-EN_cae75c76-1324-46ea-ae51-7808cd399251.pdf

Financing

For all products tagged 'Balance on Arrival' we offer the option to make a 15% deposit at the time you place the order, with the balance due on arrival.

We accept local currency indexed to dollar value.

Learn more

Delivery

For 'Balance on Arrival' orders, anticipated timelines are around 2.5 - 4 months for sea travel or ~3-4 weeks for air travel.

Require CCI and other import documentation? Contact us to learn more.

Warranty

12 Years product warranty | 30 Years linear power output warranty
