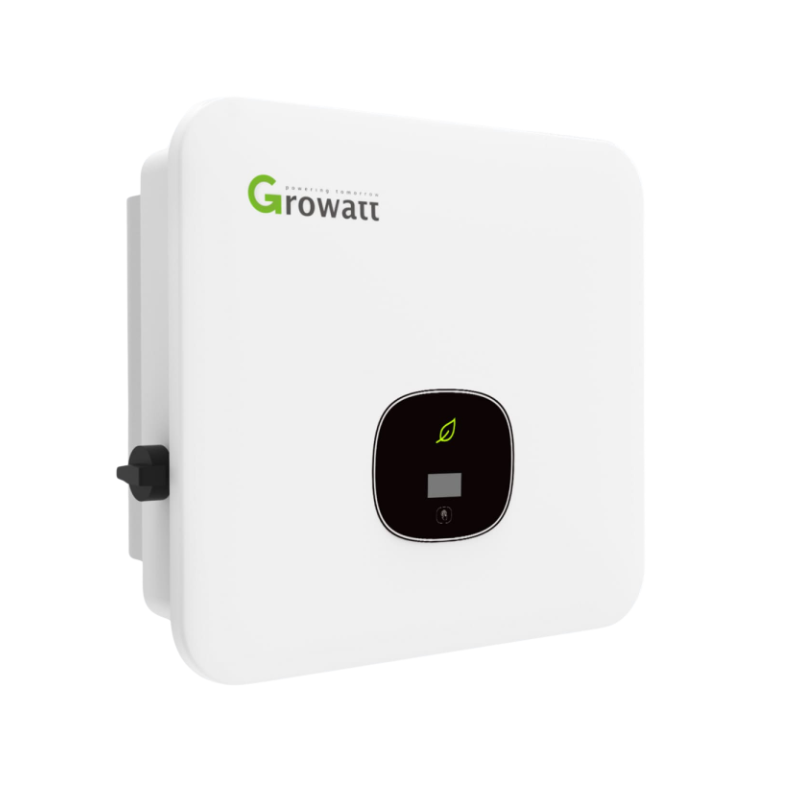

Growatt MOD 10000 TL3-X Inverter

Introducing the Growatt MOD 10000 TL3-X, a versatile and powerful three-phase inverter designed to meet the needs of larger residential and smaller commercial solar installations. This model is part of the TL3-X series, known for its compact, lightweight design and dual MPPT capabilities, allowing it to connect with two different panel arrays efficiently. Its robust construction and IP66 rating ensure flexibility in installation locations, even in environments exposed to dust and water.

Ideal for sophisticated three-phase residential systems or commercial setups requiring a dependable, high-capacity solar inverter. It's particularly suited for applications where installation space and environmental resistance are key considerations.

The MOD 10000 TL3-X stands out with its high efficiency and dual independent MPPTs, optimising energy harvest and enhancing system performance. The inverter's ultra-low start-up voltage extends the power generation window, ensuring more productive hours of operation.

Key Features

• Dual independent MPPTs: Supports two separate panel arrays, maximizing solar yield from varied panel orientations or shading conditions.
• High maximum efficiency: Reaches up to 98.6%, translating into significant energy production and reduced energy loss.
• Compact and lightweight design: Weighing just 14kg and with dimensions of 425x387x178mm, it simplifies transport and installation.
• Robust protection: Features IP66 protection, safeguarding the inverter against harsh environmental conditions like dust and water jets.
• User-friendly interface: Equipped with a touch key and OLED display for easier system management and monitoring.
• Safety features: Optional AFCI to detect and mitigate arc faults, enhancing system safety and preventing potential fire hazards.
• Flexible communication options: Offers multiple connectivity options including USB, RS485, and optional WiFi/GPRS/LAN/RF, allowing for versatile system integration and remote monitoring.

Growatt is renowned for its commitment to innovation and quality, delivering some of the most reliable and efficient solar inverters on the market. The MOD 10000 TL3-X embodies this commitment, providing advanced features that ensure long-term performance and reliability.

Specifications

• AC Output: 10,000W, 16.7A, Three-phase
• DC Input: Up to 15,000W, V range of MPPT 140-1000V, Max Isc 16A, Max voltage 1100V
• Start-up voltage: 160V
• Efficiency: Up to 98.6%
• Protection grade: IP66
• Dimensions: 425x387x178mm
• Weight: 14kg

The Growatt MOD 10000 TL3-X Inverter is an exceptional choice for anyone looking to enhance their solar system's performance with a reliable, efficient, and flexible solution. Perfect for larger residential or commercial setups, this inverter provides superior protection, advanced connectivity, and an intuitive user interface, making it a top-tier option for sustainable energy generation. Choose Growatt for an energy-efficient future, reinforced by robust design and cutting-edge technology.
