TBB | Inverter

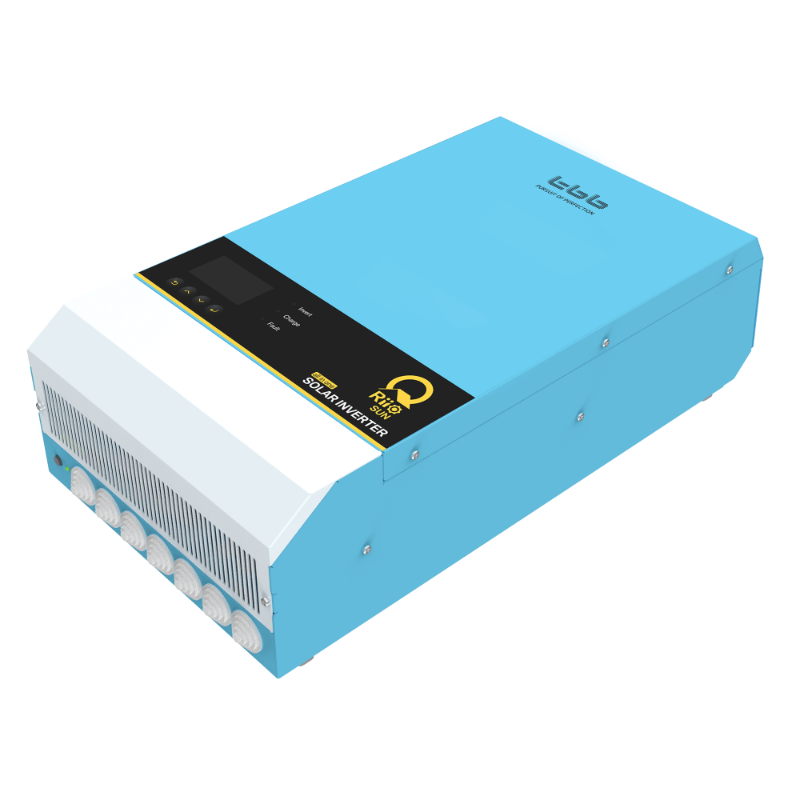

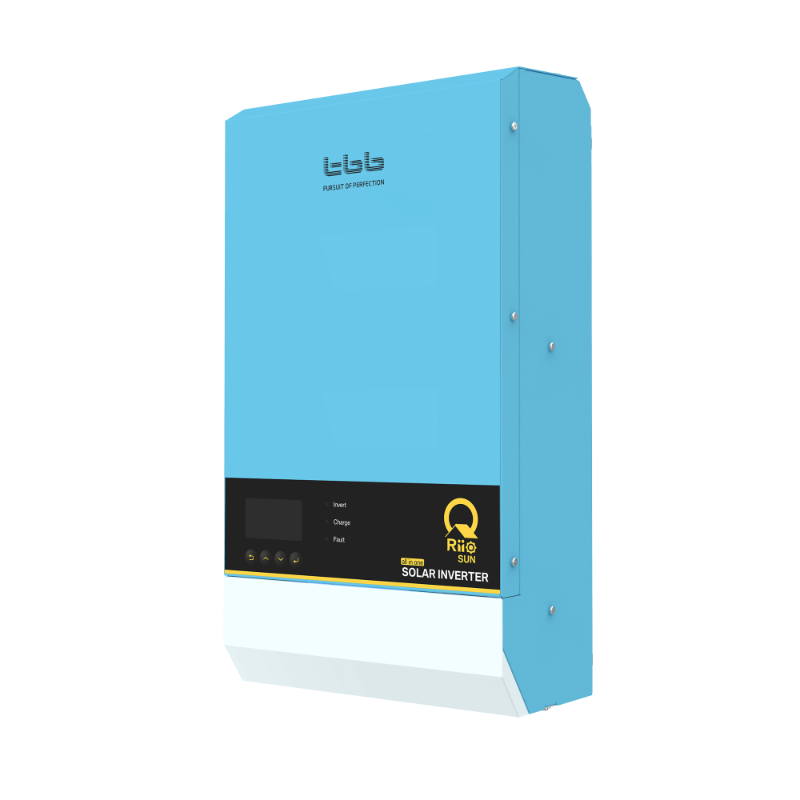

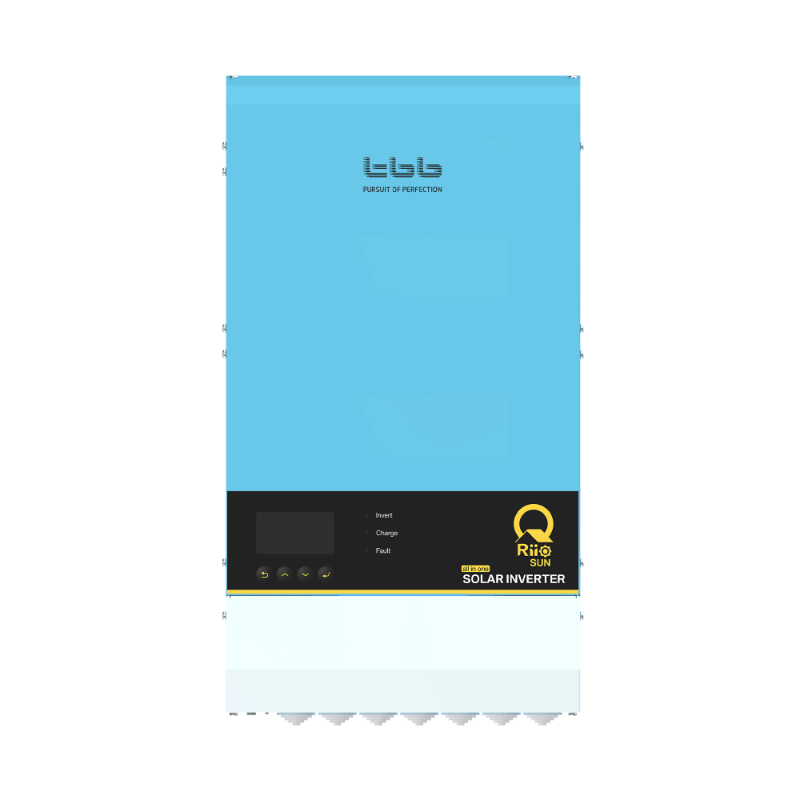

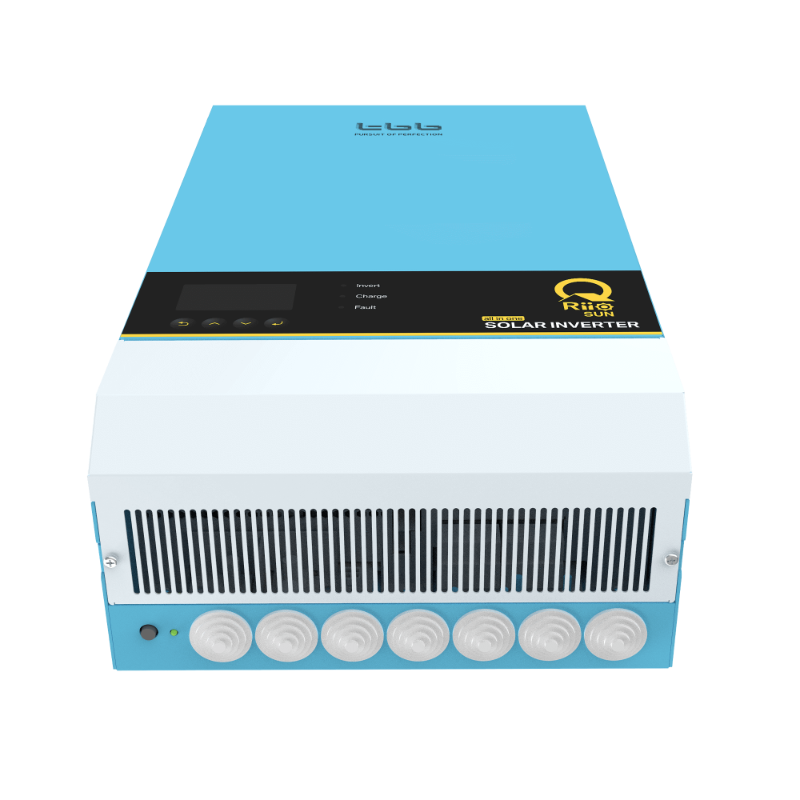

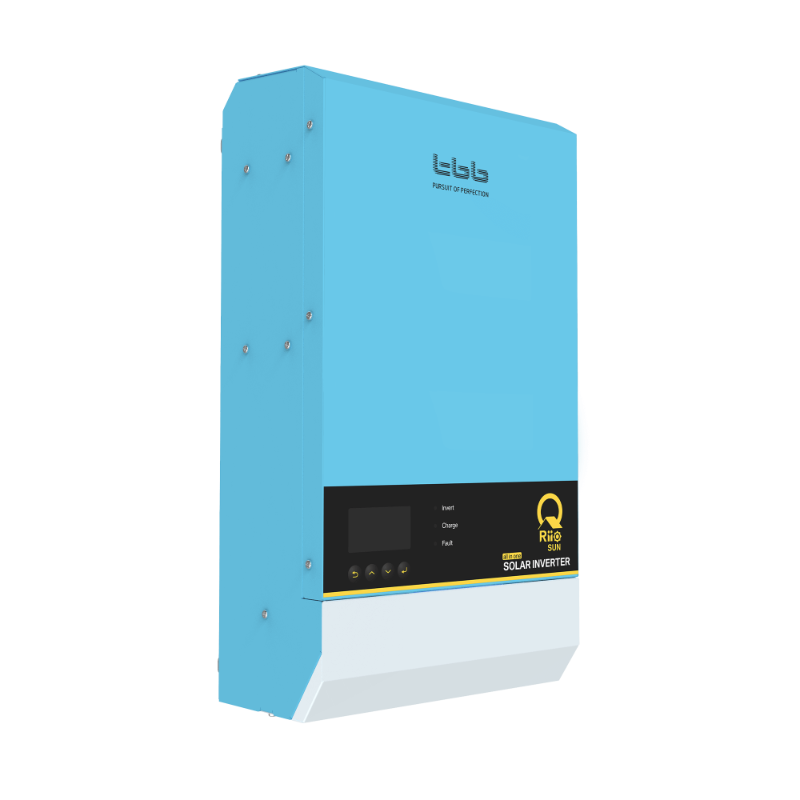

TBB RiiO Sun II Series 3KVA All-in-One Solar Inverter

TBB RiiO Sun II Series 3KVA All-in-One Solar Inverter

The TBB RiiO Sun II 3KVA All-in-One Solar Inverter is a versatile solar inverter designed for multiple applications. This powerful inverter can be configured as a DC coupling system, solar hybrid system, or power backup system, making it suitable for a wide range of uses. With its impressive surge capability, the RiiO Sun II can power demanding appliances like fridges, freezers, water pumps, and air conditioners.

Key features

  • All-in-one design: The RiiO Sun II is an all-in-one solar inverter with a transformer-based design, providing seamless integration and efficient operation.
  • Voltage: The inverter operates at 24V, suitable for various solar and backup applications.
  • High output: The inverter provides a maximum AC output of 3KW and a maximum output current of 32A, ensuring reliable power supply.
  • Flexible charging: With a maximum AC charge current of 60A, the inverter can effectively charge batteries from the grid or a generator.
  • MPPT efficiency: The inverter features maximum power point tracking (MPPT) efficiency of 98%, optimising solar energy conversion.
  • Surge capability: The inverter's distinguishing surge capability makes it capable of powering demanding appliances, enhancing its versatility.
  • Power assist & control: In generator mode, the inverter can automatically adjust its charging current to protect the grid or generator from overload, and can supplement power when needed.
  • Protection: The inverter offers comprehensive protection, including output short circuit, overload, high battery voltage, low battery voltage, high temperature, input voltage out of range, input voltage current too high, and fan block.

The TBB RiiO Sun II 3KVA All-in-One Solar Inverter is designed for reliability and versatility, making it ideal for off-grid and hybrid solar applications. With its robust features, high efficiency, and comprehensive protection, this inverter provides a reliable power solution for demanding applications.

Specifications

  • Type: All-in-One, Transformer-Based
  • Voltage: 24V
  • Max AC output: 3KW
  • Max output current: 32A
  • Max AC charge current: 60A
  • MPPT efficiency: 98%
  • Max efficiency: 91%
  • Weight: 18kg
  • Dimensions: 499 x 271 x 144 mm
  • Protection: Output short circuit, overload, high battery voltage, low battery voltage, high temperature, input voltage out of range, input voltage current too high, fan block

The TBB RiiO Sun II 3KVA All-in-One Solar Inverter is a high-performance, versatile, and reliable inverter suitable for multiple solar and backup power applications. With its impressive features, surge capability, and comprehensive protection, this inverter is an excellent choice for powering demanding appliances and ensuring reliable energy supply in off-grid, hybrid, and backup systems.

View full details
Scroll destination

Product Description

The TBB RiiO Sun II 3KVA All-in-One Solar Inverter is a versatile solar inverter designed for multiple applications. This powerful inverter can be configured as a DC coupling system, solar hybrid system, or power backup system, making it suitable for a wide range of uses. With its impressive surge capability, the RiiO Sun II can power demanding appliances like fridges, freezers, water pumps, and air conditioners.

Key features

  • All-in-one design: The RiiO Sun II is an all-in-one solar inverter with a transformer-based design, providing seamless integration and efficient operation.
  • Voltage: The inverter operates at 24V, suitable for various solar and backup applications.
  • High output: The inverter provides a maximum AC output of 3KW and a maximum output current of 32A, ensuring reliable power supply.
  • Flexible charging: With a maximum AC charge current of 60A, the inverter can effectively charge batteries from the grid or a generator.
  • MPPT efficiency: The inverter features maximum power point tracking (MPPT) efficiency of 98%, optimising solar energy conversion.
  • Surge capability: The inverter's distinguishing surge capability makes it capable of powering demanding appliances, enhancing its versatility.
  • Power assist & control: In generator mode, the inverter can automatically adjust its charging current to protect the grid or generator from overload, and can supplement power when needed.
  • Protection: The inverter offers comprehensive protection, including output short circuit, overload, high battery voltage, low battery voltage, high temperature, input voltage out of range, input voltage current too high, and fan block.

The TBB RiiO Sun II 3KVA All-in-One Solar Inverter is designed for reliability and versatility, making it ideal for off-grid and hybrid solar applications. With its robust features, high efficiency, and comprehensive protection, this inverter provides a reliable power solution for demanding applications.

Specifications

  • Type: All-in-One, Transformer-Based
  • Voltage: 24V
  • Max AC output: 3KW
  • Max output current: 32A
  • Max AC charge current: 60A
  • MPPT efficiency: 98%
  • Max efficiency: 91%
  • Weight: 18kg
  • Dimensions: 499 x 271 x 144 mm
  • Protection: Output short circuit, overload, high battery voltage, low battery voltage, high temperature, input voltage out of range, input voltage current too high, fan block

The TBB RiiO Sun II 3KVA All-in-One Solar Inverter is a high-performance, versatile, and reliable inverter suitable for multiple solar and backup power applications. With its impressive features, surge capability, and comprehensive protection, this inverter is an excellent choice for powering demanding appliances and ensuring reliable energy supply in off-grid, hybrid, and backup systems.

Data Sheets

RiiO_Sun_All_in_One_Solar_Inverter_HV_en_V1.1_1.pdf

Financing

For all products tagged 'Balance on Arrival' we offer the option to make a 15% deposit at the time you place the order, with the balance due on arrival.

We accept local currency indexed to dollar value.

Learn more

Delivery

For 'Balance on Arrival' orders, anticipated timelines are around 2.5 - 4 months for sea travel or ~3-4 weeks for air travel.

Require CCI and other import documentation? Contact us to learn more.

Warranty

2 Years warranty
