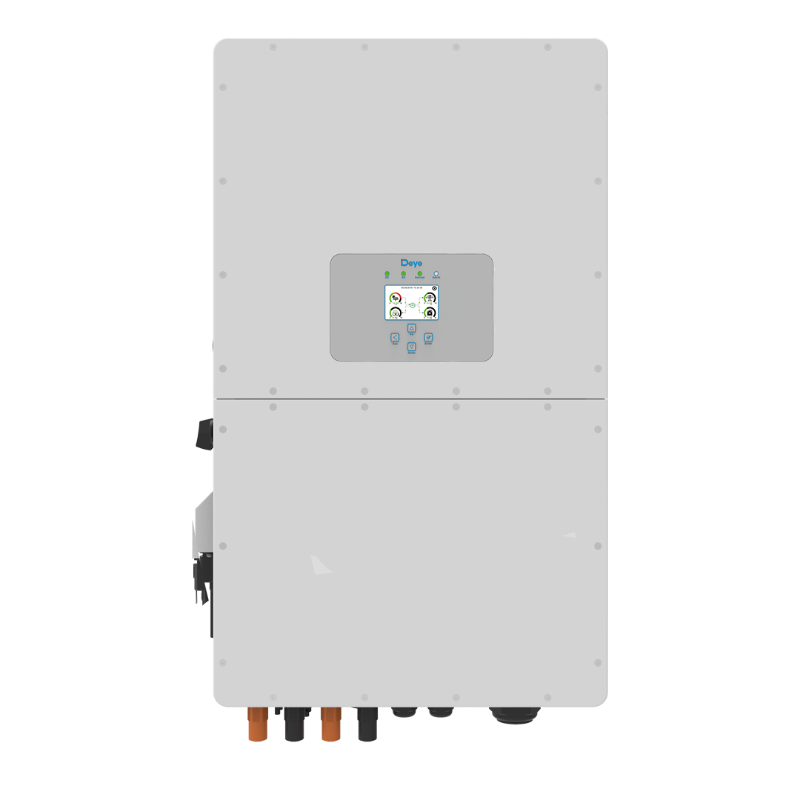

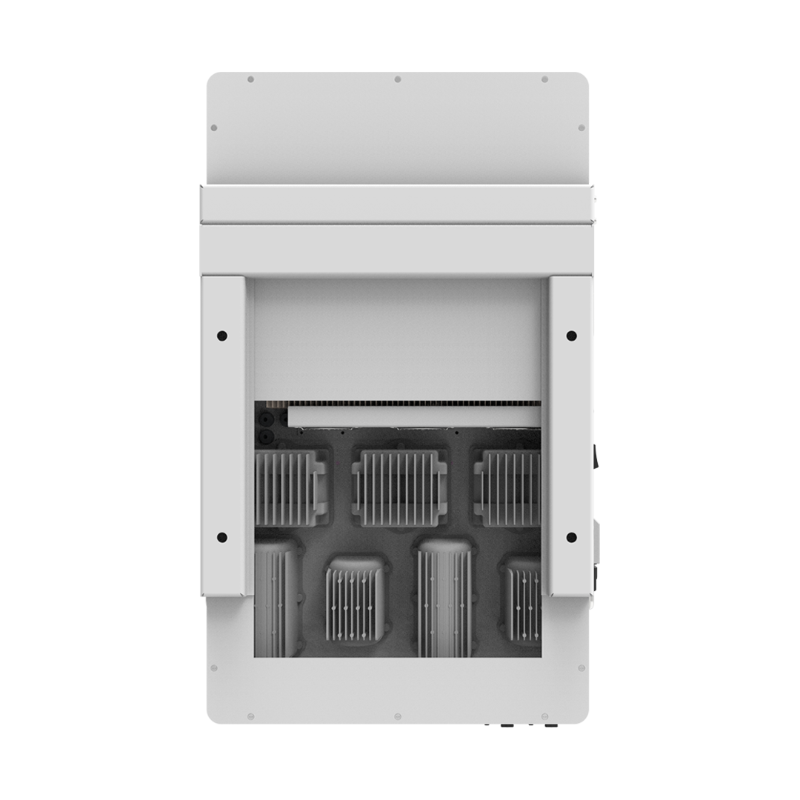

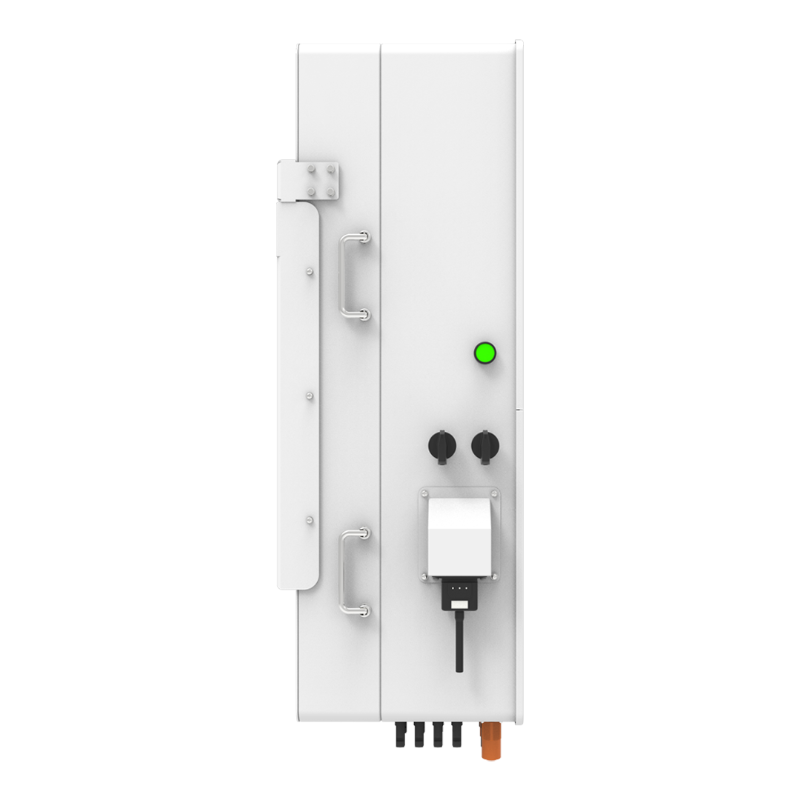

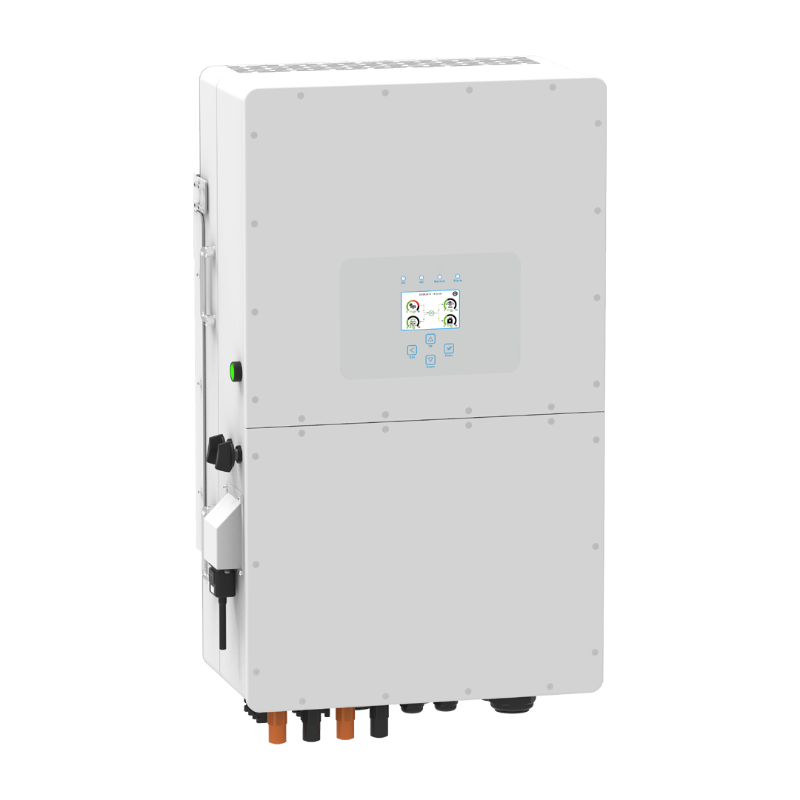

DEYE Solar Inverter 50K Three Phase (SUN-50K-SG01HP3-EU)

DEYE Solar Inverter 50K Three Phase (SUN-50K-SG01HP3-EU)

DESCRIPTION

  • Deye 50kW Hybrid Inverter (3 Phase) – SUN-50K-SG01HP3-EU
  • Model SUN-50K-SG01HP3-EU
  • 100% Unbalanced output for each phase.
  • Maximum output of up to 50% rated power.
  • DC Couple & AC Couple to retrofit existing solar system.
  • Maximum 10pcs parallel for on-grid & off-grid operation – Multiple batteries parallel supported.
  • High Voltage Battery & Higher Efficiency.
  • 6 Time periods for battery charge/discharge.
  • Storing energy from diesel generator supported.
  • Grid Type: Three Phase
  • Protection Degree: IP65
  • Noise Level: <45dB
  • Maximum Charge/Discharge Current: 100A
  • Charging Strategy for Lithium Ion Battery: Self-adaption to BMS
  • Maximum DC Input Power: 65000W
  • Maximum DC Input Voltage: 1000V
  • MPPT Range: 150-850V
  • 4 x MPPT
  • Start-up Voltage: 180V
  • AC Output & UPS Power: 50000W
  • Maximum AC Output Power: 55000W
  • Maximum Efficiency: 97.60%
  • Euro Efficiency: 97%
  • MPPT Efficiency: 99.90%
  • Battery Type: Lead-acid or Lithium-ion (Not Included – Sold Separately)
  • Battery Voltage Range: 160-800V
  • Communication with BMS: CAN/RS485
  • Smart Cooling
  • Operation Temperature: -40°C to 60°C, 45°C Derating
  • Installation Type: Wall Mounted.
  • Weight: 75Kg
  • Dimensions (W x H x D): 527 x 894 x 294 mm
  • Refer To Brochure For Detailed Product Specifications.
  • Product might vary from depicted images.
  • Graphics are for illustrative purposes only.
  • 5 Year Limited Product Warranty. T & C’s Apply
  • Free Delivery Nationwide – South Africa
  • Recommended Solar Panel Configuration:
    • Min 5 Panels – Max 112 Panels (Refer to breakdown below for Panel set up per MPPT)
    • First MPPT: Min 5 Panels – Max 28 Panels (Panel Size: 220W to 560W Panels) (Up to 16 Panels on first MPPT)
    • Second MPPT: Min 5 Panels – Max 28 Panels (Panel Size: 220W to 560W Panels) (Up to 16 Panels on second MPPT)
    • Third MPPT: Min 5 Panels – Max 28 Panels (Panel Size: 220W to 560W Panels) (Up to 16 Panels on third MPPT)
    • Fourth MPPT: Min 5 Panels – Max 28 Panels (Panel Size: 220W to 560W Panels) (Up to 16 Panels on fourth MPPT)
    • Based off Seraphim, Raystech, JINKO, JA Solar & GSun Solar Panel Specifications
View full details
Price available on request
Scroll destination

Product Description

DESCRIPTION

  • Deye 50kW Hybrid Inverter (3 Phase) – SUN-50K-SG01HP3-EU
  • Model SUN-50K-SG01HP3-EU
  • 100% Unbalanced output for each phase.
  • Maximum output of up to 50% rated power.
  • DC Couple & AC Couple to retrofit existing solar system.
  • Maximum 10pcs parallel for on-grid & off-grid operation – Multiple batteries parallel supported.
  • High Voltage Battery & Higher Efficiency.
  • 6 Time periods for battery charge/discharge.
  • Storing energy from diesel generator supported.
  • Grid Type: Three Phase
  • Protection Degree: IP65
  • Noise Level: <45dB
  • Maximum Charge/Discharge Current: 100A
  • Charging Strategy for Lithium Ion Battery: Self-adaption to BMS
  • Maximum DC Input Power: 65000W
  • Maximum DC Input Voltage: 1000V
  • MPPT Range: 150-850V
  • 4 x MPPT
  • Start-up Voltage: 180V
  • AC Output & UPS Power: 50000W
  • Maximum AC Output Power: 55000W
  • Maximum Efficiency: 97.60%
  • Euro Efficiency: 97%
  • MPPT Efficiency: 99.90%
  • Battery Type: Lead-acid or Lithium-ion (Not Included – Sold Separately)
  • Battery Voltage Range: 160-800V
  • Communication with BMS: CAN/RS485
  • Smart Cooling
  • Operation Temperature: -40°C to 60°C, 45°C Derating
  • Installation Type: Wall Mounted.
  • Weight: 75Kg
  • Dimensions (W x H x D): 527 x 894 x 294 mm
  • Refer To Brochure For Detailed Product Specifications.
  • Product might vary from depicted images.
  • Graphics are for illustrative purposes only.
  • 5 Year Limited Product Warranty. T & C’s Apply
  • Free Delivery Nationwide – South Africa
  • Recommended Solar Panel Configuration:
    • Min 5 Panels – Max 112 Panels (Refer to breakdown below for Panel set up per MPPT)
    • First MPPT: Min 5 Panels – Max 28 Panels (Panel Size: 220W to 560W Panels) (Up to 16 Panels on first MPPT)
    • Second MPPT: Min 5 Panels – Max 28 Panels (Panel Size: 220W to 560W Panels) (Up to 16 Panels on second MPPT)
    • Third MPPT: Min 5 Panels – Max 28 Panels (Panel Size: 220W to 560W Panels) (Up to 16 Panels on third MPPT)
    • Fourth MPPT: Min 5 Panels – Max 28 Panels (Panel Size: 220W to 560W Panels) (Up to 16 Panels on fourth MPPT)
    • Based off Seraphim, Raystech, JINKO, JA Solar & GSun Solar Panel Specifications
