Enersol | Battery

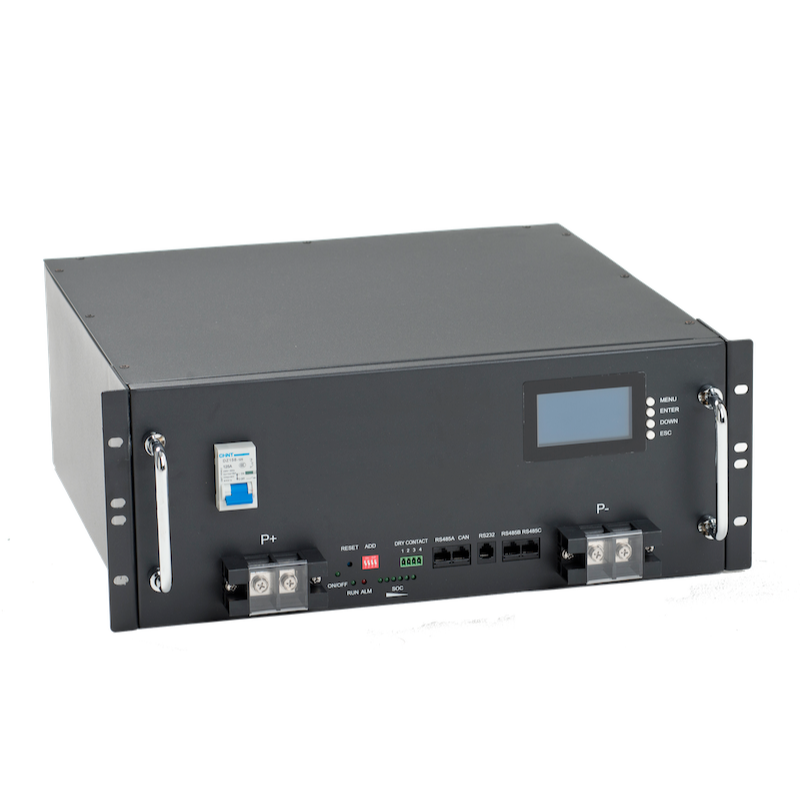

Enersol Lithium Ion Battery RM51 100Ah

Enersol Lithium Ion Battery RM51 100Ah

The Enersol RM51 100Ah Lithium Ion Rack-Mounted Battery is a state-of-the-art energy storage solution designed for high-demand applications that require robust and intelligent energy management. This battery system is ideal for commercial and industrial settings, such as data centers, industrial complexes, and large-scale renewable energy installations. With cutting-edge features like an intelligent Battery Management System (BMS) and real-time protection mechanisms, the RM51 100Ah ensures optimal performance and reliability.

Key features

  • Robust mechanical design: The battery is encased in black powder coat steel, with dimensions of 442mm x 550mm x 244mm and a weight of approximately 85kg, making it durable and sturdy.
  • Mechanical Design: Rack-mounted
  • Application: The "RM" series is designed for rack mounting, typically used in commercial or industrial installations where multiple batteries are stacked together in a server-style rack.
  • Comprehensive communication ports: The battery offers versatile connectivity options, including 1x RS232, 3x RS485, 1x CAN-BUS, and 1x Dry Contact.
  • Intelligent BMS: The Battery Management System provides autonomous cell balancing, cycle counting, and remote firmware updates, enhancing efficiency and longevity.
  • Real-time protection: The battery features mechanisms to prevent overcharge, over-discharge, and over-temperature situations. It also includes reverse polarity protection and an anti-theft system.
  • User-friendly interface: The battery is equipped with an interactive LCD screen, LED indicators, and an audible alarm for user-friendly monitoring and interaction.
  • High electrical performance: The battery has a rated capacity of 100Ah, with a nominal voltage of 51.2V and a nominal energy of 5120Wh. It supports maximum charge and discharge currents tailored to system size and configuration.
  • Extended warranty and accessories: The battery offers a 10-year warranty and includes essential accessories such as parallel cables, cabinet bolts, and a dry contact jockey. Optional accessories are available for customisation.

The Enersol RM51 100Ah Lithium Ion Battery is designed for reliability and performance, making it ideal for demanding energy applications. With its robust mechanical design, intelligent BMS, and real-time protection, this battery provides a reliable energy solution for critical tasks.

Specifications

  • Nominal energy: 5120Wh
  • Capacity: 100Ah
  • Nominal voltage: 51.2V
  • Maximum charge/Discharge voltage: 57.6V / 43.2V
  • Parallel capability: Up to 15 units
  • Operating temperature: Charge/Discharge: 0°C to 60°C, Storage: -20°C to 60°C
  • Cycle life: Over 6000 cycles at 80% DoD
  • Dimensions: 442mm x 550mm x 244mm
  • Weight: Approx. 85kg

The Enersol RM51 100Ah Lithium Ion Battery is a powerful and efficient energy storage solution designed for critical and demanding applications. With its advanced features, robust design, and superior performance, this battery is an ideal choice for reliable and long-lasting energy management in commercial and industrial settings. Whether upgrading existing infrastructure or implementing new installations, this system provides the flexibility and performance required for complex energy challenges.

View full details
Price available on request
Scroll destination

Product Description

The Enersol RM51 100Ah Lithium Ion Rack-Mounted Battery is a state-of-the-art energy storage solution designed for high-demand applications that require robust and intelligent energy management. This battery system is ideal for commercial and industrial settings, such as data centers, industrial complexes, and large-scale renewable energy installations. With cutting-edge features like an intelligent Battery Management System (BMS) and real-time protection mechanisms, the RM51 100Ah ensures optimal performance and reliability.

Key features

  • Robust mechanical design: The battery is encased in black powder coat steel, with dimensions of 442mm x 550mm x 244mm and a weight of approximately 85kg, making it durable and sturdy.
  • Mechanical Design: Rack-mounted
  • Application: The "RM" series is designed for rack mounting, typically used in commercial or industrial installations where multiple batteries are stacked together in a server-style rack.
  • Comprehensive communication ports: The battery offers versatile connectivity options, including 1x RS232, 3x RS485, 1x CAN-BUS, and 1x Dry Contact.
  • Intelligent BMS: The Battery Management System provides autonomous cell balancing, cycle counting, and remote firmware updates, enhancing efficiency and longevity.
  • Real-time protection: The battery features mechanisms to prevent overcharge, over-discharge, and over-temperature situations. It also includes reverse polarity protection and an anti-theft system.
  • User-friendly interface: The battery is equipped with an interactive LCD screen, LED indicators, and an audible alarm for user-friendly monitoring and interaction.
  • High electrical performance: The battery has a rated capacity of 100Ah, with a nominal voltage of 51.2V and a nominal energy of 5120Wh. It supports maximum charge and discharge currents tailored to system size and configuration.
  • Extended warranty and accessories: The battery offers a 10-year warranty and includes essential accessories such as parallel cables, cabinet bolts, and a dry contact jockey. Optional accessories are available for customisation.

The Enersol RM51 100Ah Lithium Ion Battery is designed for reliability and performance, making it ideal for demanding energy applications. With its robust mechanical design, intelligent BMS, and real-time protection, this battery provides a reliable energy solution for critical tasks.

Specifications

  • Nominal energy: 5120Wh
  • Capacity: 100Ah
  • Nominal voltage: 51.2V
  • Maximum charge/Discharge voltage: 57.6V / 43.2V
  • Parallel capability: Up to 15 units
  • Operating temperature: Charge/Discharge: 0°C to 60°C, Storage: -20°C to 60°C
  • Cycle life: Over 6000 cycles at 80% DoD
  • Dimensions: 442mm x 550mm x 244mm
  • Weight: Approx. 85kg

The Enersol RM51 100Ah Lithium Ion Battery is a powerful and efficient energy storage solution designed for critical and demanding applications. With its advanced features, robust design, and superior performance, this battery is an ideal choice for reliable and long-lasting energy management in commercial and industrial settings. Whether upgrading existing infrastructure or implementing new installations, this system provides the flexibility and performance required for complex energy challenges.

Data Sheets

WM51-100_Enersol_Battery_Data_Sheet_lithium_v1.pdf

Financing

For all products tagged 'Balance on Arrival' we offer the option to make a 15% deposit at the time you place the order, with the balance due on arrival.

We accept local currency indexed to dollar value.

Learn more

Delivery

For 'Balance on Arrival' orders, anticipated timelines are around 2.5 - 4 months for sea travel or ~3-4 weeks for air travel.

Require CCI and other import documentation? Contact us to learn more.

Warranty

10 years
