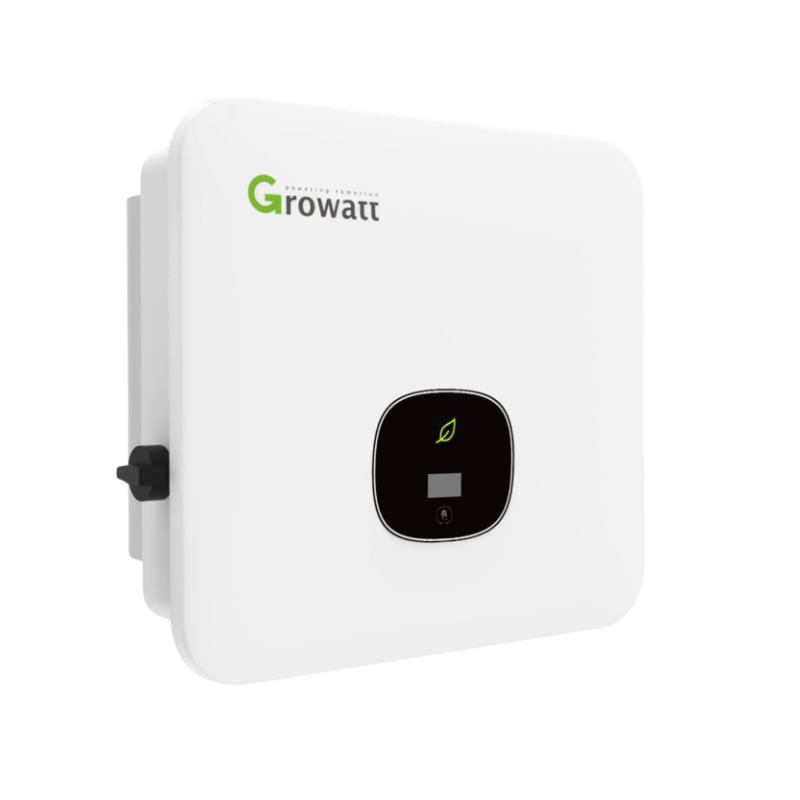

Growatt MOD 12000 TL3-X

Growatt MOD 12000 TL3-X

The TL3-X series from Growatt are compact and light three phase inverters. With two MPPTs, the MOD 3-15K TL3-X series can be connected to two strings, and are therefore suitable for connecting two different panel arrays.

The Growatt TL3-X range offer a suitable solution for larger 3-phase residential systems, as well as smaller commercial systems. The compact design enables ease of transportation and installation, whilst the IP66 rating enables flexibility in location.

The ultra-low start-up and wide working voltages enable wider power generation windows.

Features:

  • Dual independent MPPTs
  • Built-in DC switch
  • High maximum efficiency 98.6%
  • Touch key and OLED display
  • Optional AFCI (Arc-Fault Circuit Interrupter function)
  • IP66 protection grade
  • Easy installation

AC attributes

  • Max power: 12000W
  • Max current: 20A
  • Number of phases: 3

DC attributes

  • Number of MPPT: 2
  • V range of MPPT: 140 - 1000V
  • Max power: 18000W
  • Max Isc current: 16A
  • Max voltage: 1100V
  • Startup voltage: 160V

System

Max efficiency: 98.6%

IP rating: IP66

Weight: 16kg

Dimensions: 425x387x178mm

Communication: USB/RS485 (Optional- WiFi/GPRS/LAN/RF)







View full details
Scroll destination

Product Description

The TL3-X series from Growatt are compact and light three phase inverters. With two MPPTs, the MOD 3-15K TL3-X series can be connected to two strings, and are therefore suitable for connecting two different panel arrays.

The Growatt TL3-X range offer a suitable solution for larger 3-phase residential systems, as well as smaller commercial systems. The compact design enables ease of transportation and installation, whilst the IP66 rating enables flexibility in location.

The ultra-low start-up and wide working voltages enable wider power generation windows.

Features:

  • Dual independent MPPTs
  • Built-in DC switch
  • High maximum efficiency 98.6%
  • Touch key and OLED display
  • Optional AFCI (Arc-Fault Circuit Interrupter function)
  • IP66 protection grade
  • Easy installation

AC attributes

  • Max power: 12000W
  • Max current: 20A
  • Number of phases: 3

DC attributes

  • Number of MPPT: 2
  • V range of MPPT: 140 - 1000V
  • Max power: 18000W
  • Max Isc current: 16A
  • Max voltage: 1100V
  • Startup voltage: 160V

System

Max efficiency: 98.6%

IP rating: IP66

Weight: 16kg

Dimensions: 425x387x178mm

Communication: USB/RS485 (Optional- WiFi/GPRS/LAN/RF)







Data Sheets

Financing

For all products tagged 'Balance on Arrival' we offer the option to make a 15% deposit at the time you place the order, with the balance due on arrival.

We accept local currency indexed to dollar value.

Learn more

New Tab

Tab content

Delivery

For 'Balance on Arrival' orders, anticipated timelines are around 2.5 - 4 months for sea travel or ~3-4 weeks for air travel.

Require CCI and other import documentation? Contact us to learn more.

Warranty

5 Years warranty
