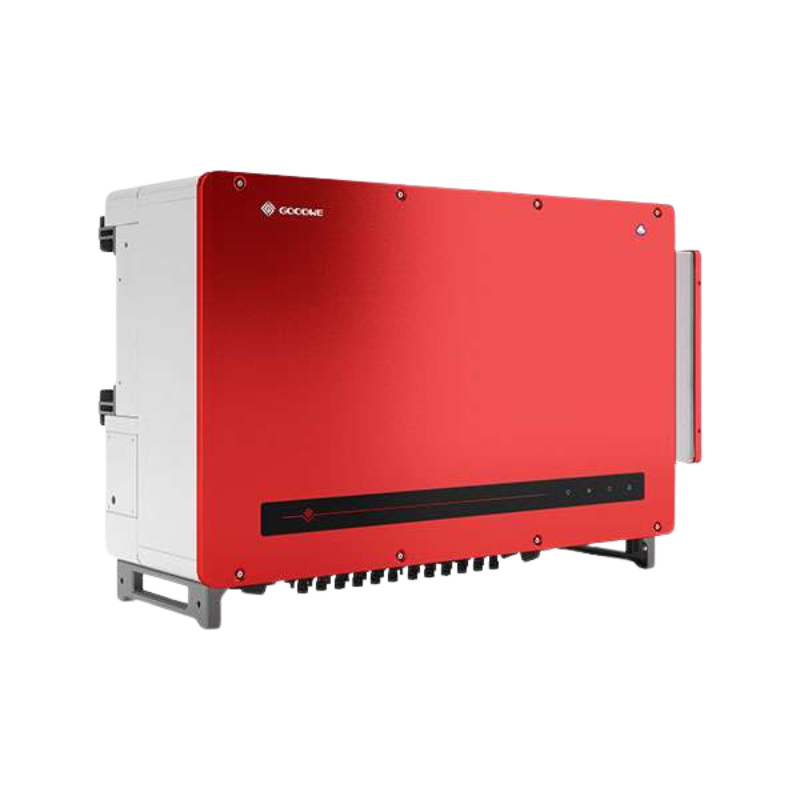

GW100K-HT (Wi-Fi plus DC Switch configuration)

The new HT 1100Vdc Series (73-136 K) is the ultimate high-power string inverter for the C&I sector. The HT series offers up to 12 MPPTs, and is compatible with Bi-facial modules, with a higher threshold of DC current (Max. 15A per string). It includes PLC communication, internal humidity detection. Configuration can be easily done via Bluetooth and firmware diagnosis & upgrading can be operated remotely. The HT series seamlessly incorporates different sets of technical strengths designed to achieve higher savings in the installation, enhance productivity and diversify available monitoring options, taking safety to the maximum possible level in accordance with the strictest industry standards.\

Features:

• 100KW
• Three Phase
• 10 MPPT tracker
• Compatible with Bi-facial modules
• Optional Type I Surge Protection & AFCI
• Power line communication
• I-V curve diagnosis
• Easy and quick configuration via Bluetooth
• Internal humidity monitoring
• String level monitoring
• IP66 and C5 protection
• Weight: 98.5kg
• Dimension: 100.8 × 67.8 × 34.3 cm
