LonGi | PV Modules

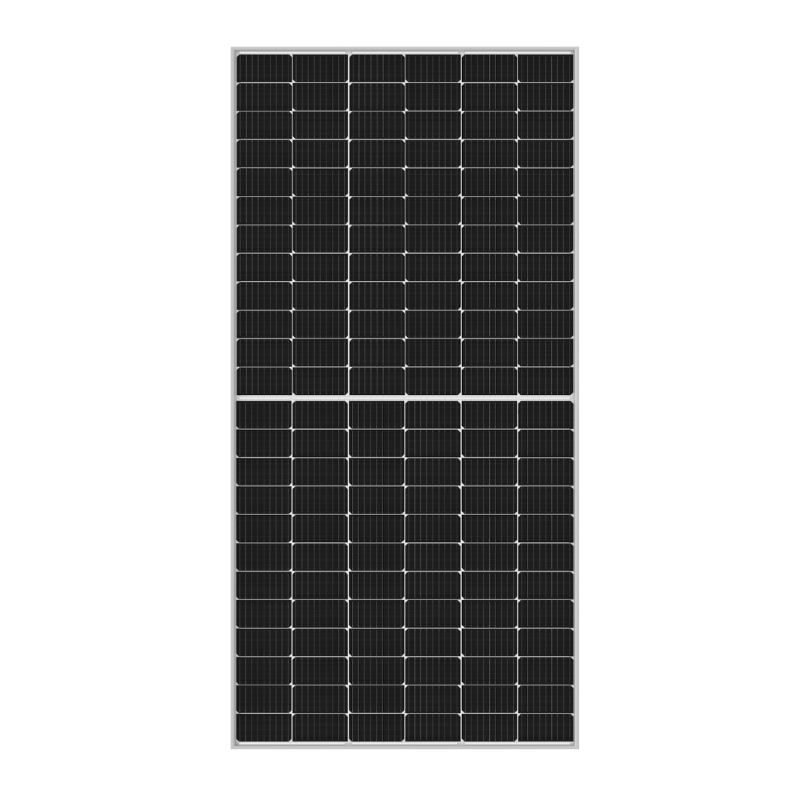

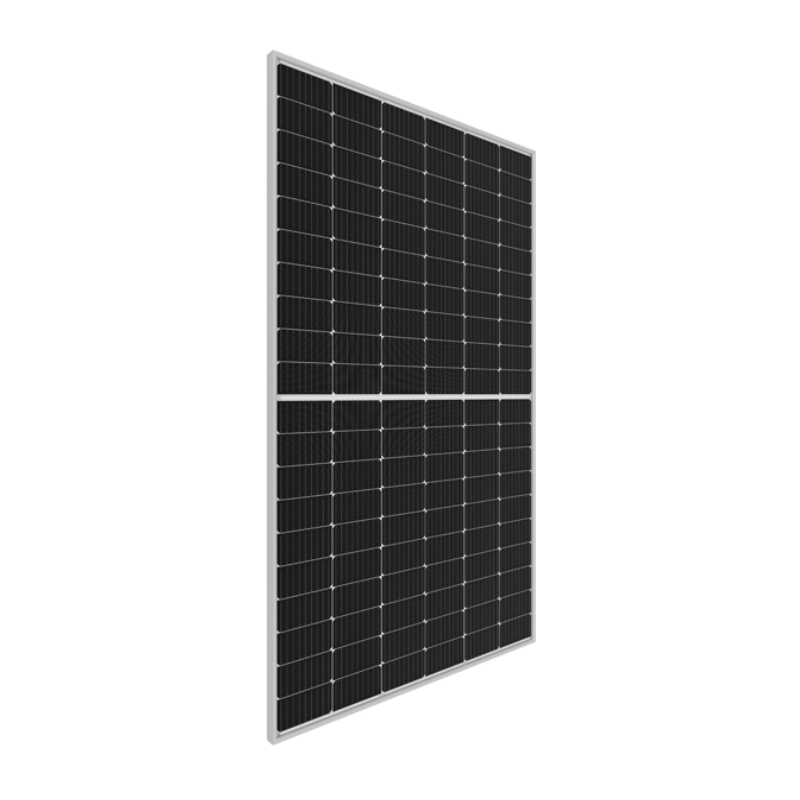

LONGi HI-MO6 LR5-72HTH 575W Mono Solar Module

LONGi HI-MO6 LR5-72HTH 575W Mono Solar Module

The LonGi HiMo 6 Explorer V2 LR5-72HTH 575W Mono Crystalline Solar Panel is a high-performance solar module with 144 half-cut cells, ideal for both isolated photovoltaic installations and grid-connected systems. This Mono Crystalline solar panel offers exceptional quality and performance, making it an excellent choice for maximising solar energy production.

Key features

  • Modern design: The sleek, simple design embodies modern style while enhancing energy generation performance.
  • High-quality construction: The module's high-quality construction guarantees long-term reliability and durability.
  • Efficient energy production: The half-cell technology improves efficiency and reduces power loss, leading to superior energy yield.
  • 144 Half-cut cells: The panel features 144 half-cut cells (6x24), maximizing energy output and enhancing performance.
  • PERC technology: The busbar half-cut PERC cell design increases efficiency and offers a better aesthetic appearance.
  • High efficiency: The module offers an impressive efficiency rating of 22.5%, ensuring optimal power generation.
  • Durable materials: The panel features a single 3.2mm coated tempered glass and an anodised aluminium alloy frame, enhancing durability and weather resistance.
  • IP68 junction box: The junction box is rated IP68 and comes with 3 bypass diodes, enhancing protection and reliability.
  • MC4 connectors: The panel uses MC4 connectors, ensuring easy and reliable connections.

LonGi, a leader in the photovoltaic industry, has designed the HiMo 6 Explorer V2 LR5-72HTH 575W Mono Crystalline Solar Panel with advanced technology and robust construction. The panel’s PERC technology, half-cell design, and high efficiency reflect LonGi’s commitment to delivering innovative and reliable solar solutions.

Specifications

  • Maximum Power Output (Pmax): 575W
  • Open Circuit Voltage (Voc): 52.06V
  • Maximum Power Voltage (Vmp): 43.91V
  • Short Circuit Current (Isc): 14.14A
  • Maximum Power Current (Imp): 13.12A
  • Module efficiency: 22.5%
  • Dimensions: 2278 x 1134 x 35 mm
  • Weight: 28 kg
  • Number of cells: 144 (6x24)
  • Junction box: IP68, 3 Bypass Diodes
  • Connector: MC4
  • Frame: Anodised Aluminium Alloy

The LonGi HiMo 6 Explorer V2 LR5-72HTH 575W Mono Crystalline Solar Panel is an exceptional solar module that offers top-tier efficiency, durability, and reliability. With its advanced features and cutting-edge technology, this solar panel is a great choice for those seeking high-quality solar solutions for their energy needs, whether for residential, commercial, or utility-scale applications.

View full details
Price available on request
Scroll destination

Product Description

The LonGi HiMo 6 Explorer V2 LR5-72HTH 575W Mono Crystalline Solar Panel is a high-performance solar module with 144 half-cut cells, ideal for both isolated photovoltaic installations and grid-connected systems. This Mono Crystalline solar panel offers exceptional quality and performance, making it an excellent choice for maximising solar energy production.

Key features

  • Modern design: The sleek, simple design embodies modern style while enhancing energy generation performance.
  • High-quality construction: The module's high-quality construction guarantees long-term reliability and durability.
  • Efficient energy production: The half-cell technology improves efficiency and reduces power loss, leading to superior energy yield.
  • 144 Half-cut cells: The panel features 144 half-cut cells (6x24), maximizing energy output and enhancing performance.
  • PERC technology: The busbar half-cut PERC cell design increases efficiency and offers a better aesthetic appearance.
  • High efficiency: The module offers an impressive efficiency rating of 22.5%, ensuring optimal power generation.
  • Durable materials: The panel features a single 3.2mm coated tempered glass and an anodised aluminium alloy frame, enhancing durability and weather resistance.
  • IP68 junction box: The junction box is rated IP68 and comes with 3 bypass diodes, enhancing protection and reliability.
  • MC4 connectors: The panel uses MC4 connectors, ensuring easy and reliable connections.

LonGi, a leader in the photovoltaic industry, has designed the HiMo 6 Explorer V2 LR5-72HTH 575W Mono Crystalline Solar Panel with advanced technology and robust construction. The panel’s PERC technology, half-cell design, and high efficiency reflect LonGi’s commitment to delivering innovative and reliable solar solutions.

Specifications

  • Maximum Power Output (Pmax): 575W
  • Open Circuit Voltage (Voc): 52.06V
  • Maximum Power Voltage (Vmp): 43.91V
  • Short Circuit Current (Isc): 14.14A
  • Maximum Power Current (Imp): 13.12A
  • Module efficiency: 22.5%
  • Dimensions: 2278 x 1134 x 35 mm
  • Weight: 28 kg
  • Number of cells: 144 (6x24)
  • Junction box: IP68, 3 Bypass Diodes
  • Connector: MC4
  • Frame: Anodised Aluminium Alloy

The LonGi HiMo 6 Explorer V2 LR5-72HTH 575W Mono Crystalline Solar Panel is an exceptional solar module that offers top-tier efficiency, durability, and reliability. With its advanced features and cutting-edge technology, this solar panel is a great choice for those seeking high-quality solar solutions for their energy needs, whether for residential, commercial, or utility-scale applications.

Data Sheets

1_LGiLE_PM_-T-PMD-059-F132_LR5-72HTH_565-585M_V2_30-30_15frame-explorer_-V18_Draft_EN.pdf
