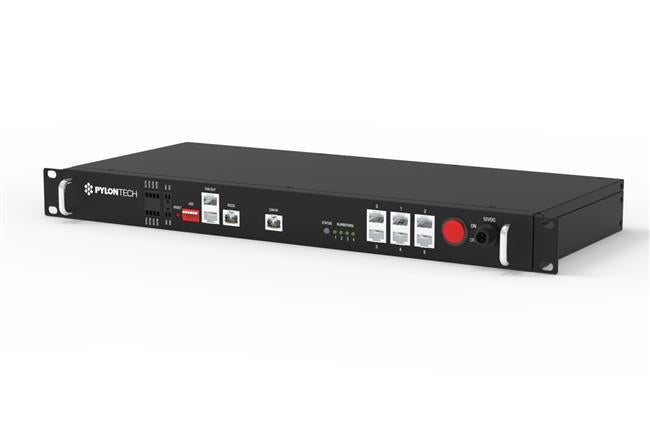

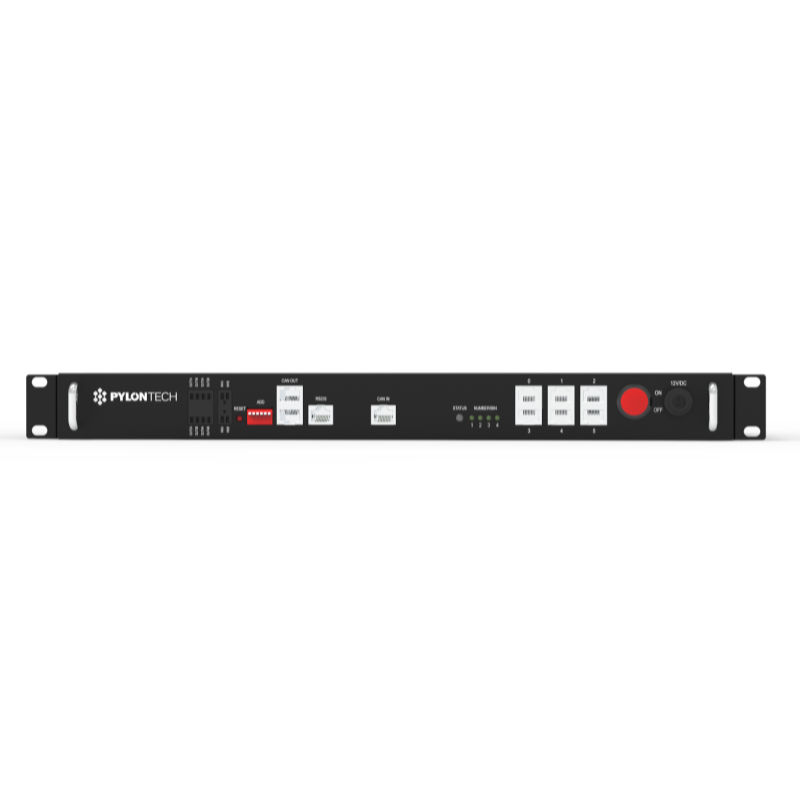

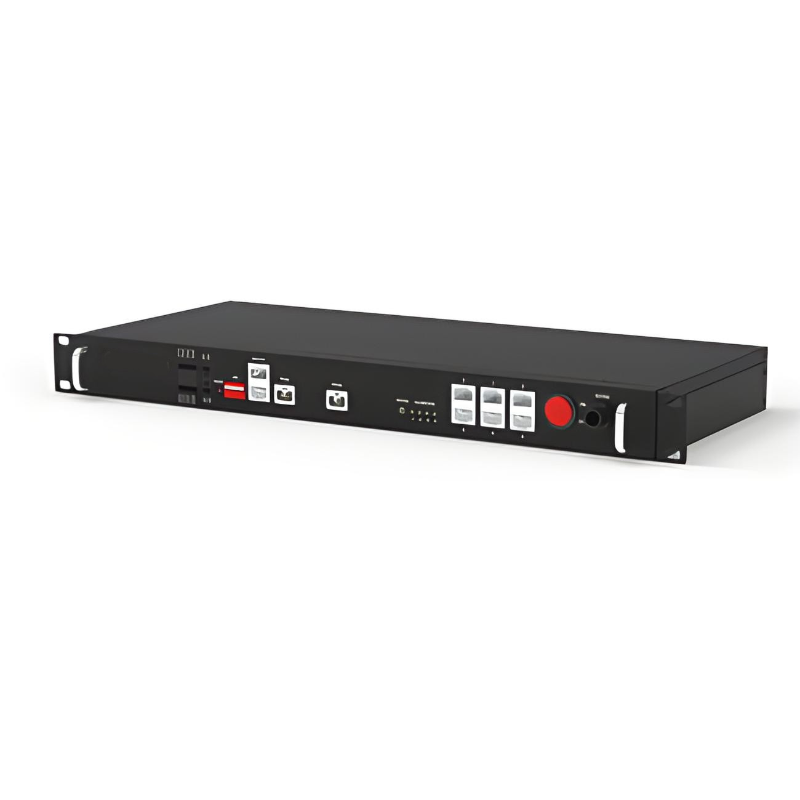

Pylontech LV-HUB Low Voltage Battery Communication Hub

The Pylontech LV-HUB Low Voltage Battery Communication Hub is an essential component designed for seamless communication and integration of multiple 48V battery groups in energy storage systems. This communication hub serves as a CAN/RS485 interface, allowing for parallel connection and effective management of battery groups, making it ideal for larger energy systems.

Key features

• Communication hub: The LV-HUB facilitates communication between multiple 48V battery groups, ensuring smooth integration and operation within energy systems.
• System requirement: The hub is crucial when utilizing 17 or more solar batteries in a system, ensuring optimal communication for peak performance.

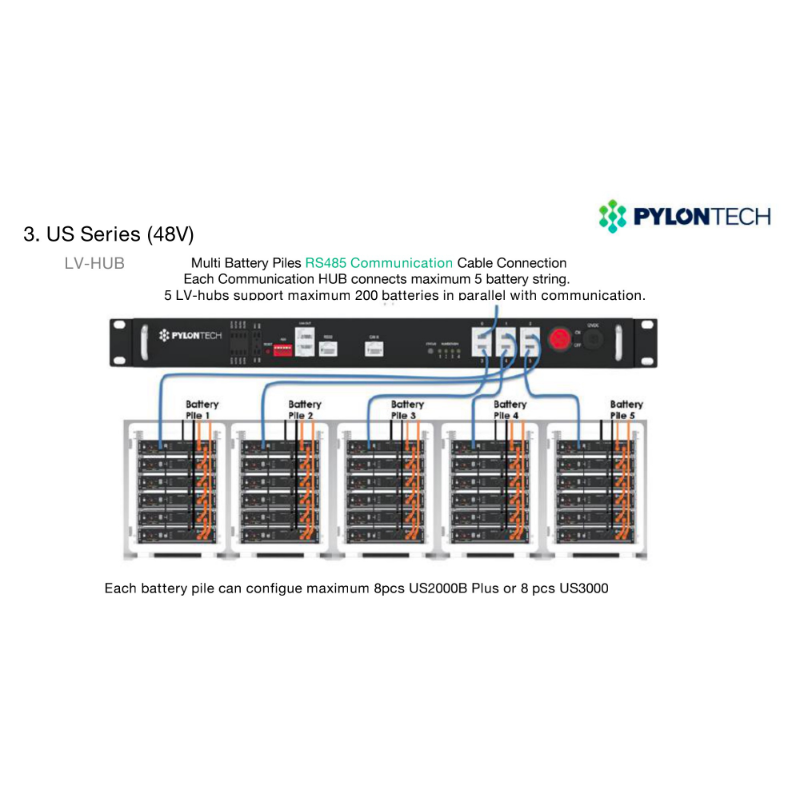

• Group management: The LV-HUB is capable of managing up to 5 battery groups, each comprising a combination of the following Pylontech batteries:
  • 16 x UP5000
  • 16 x US3000C
  • 16 x US2000C

The LV-HUB is a vital component for managing communication between parallel-connected battery groups in energy storage systems requiring precise monitoring and control. With its ability to handle multiple battery groups, it offers flexibility and scalability for various energy storage setups.

Specifications

• Communication protocol: CAN/RS485
• Compatible batteries:
  • UP5000 (up to 16 units per group)
  • US3000C (up to 16 units per group)
  • US2000C (up to 16 units per group)
• Maximum number of battery groups: 5
• Dimensions: 185 x 125 x 45 mm
• Weight: 1 kg

The Pylontech LV-HUB Low Voltage Battery Communication Hub is an essential accessory for energy systems requiring the integration of multiple 48V battery groups. With its capacity to manage up to 5 battery groups and ensure optimal communication, the LV-HUB offers a flexible and scalable solution for larger energy storage setups, enhancing system performance and reliability.
