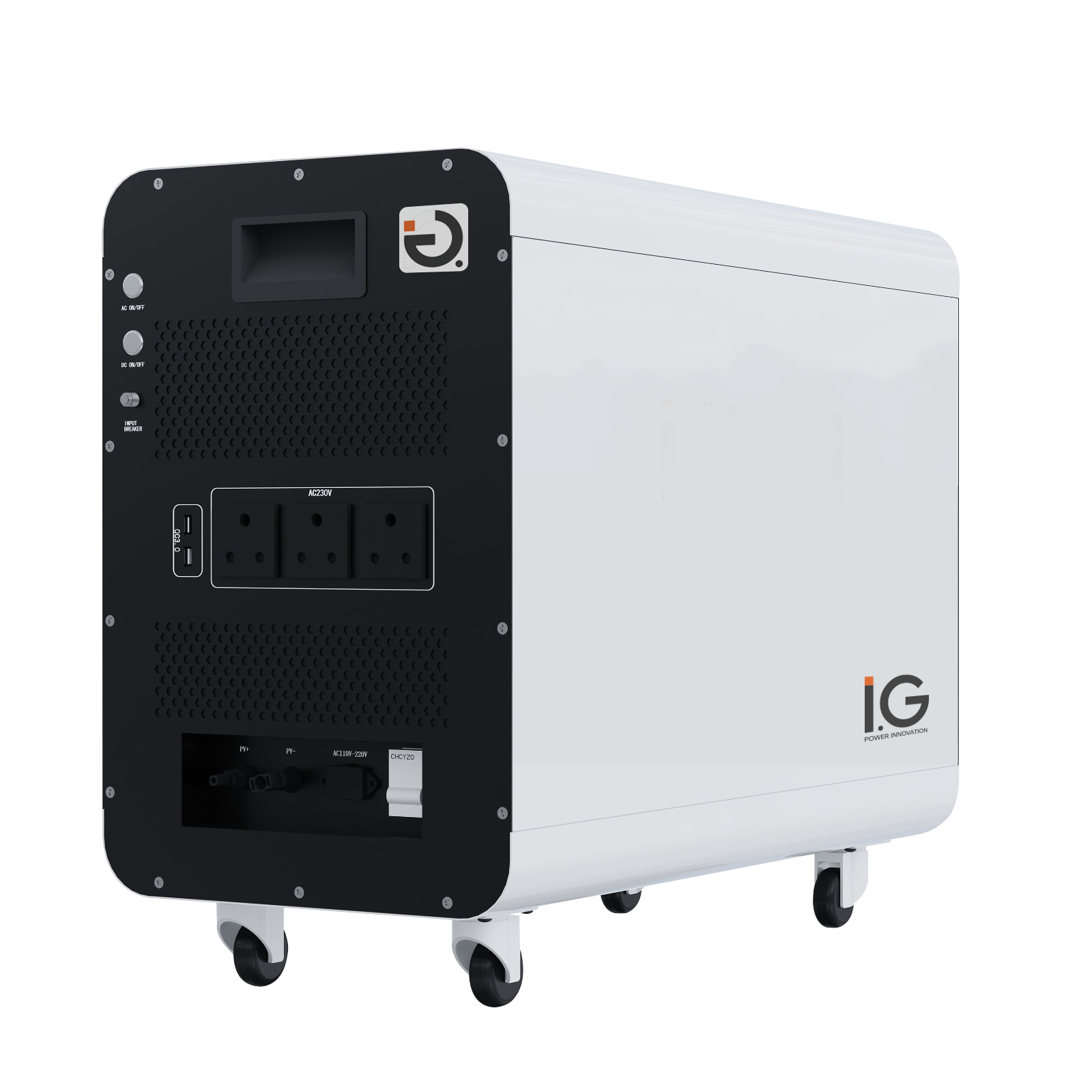

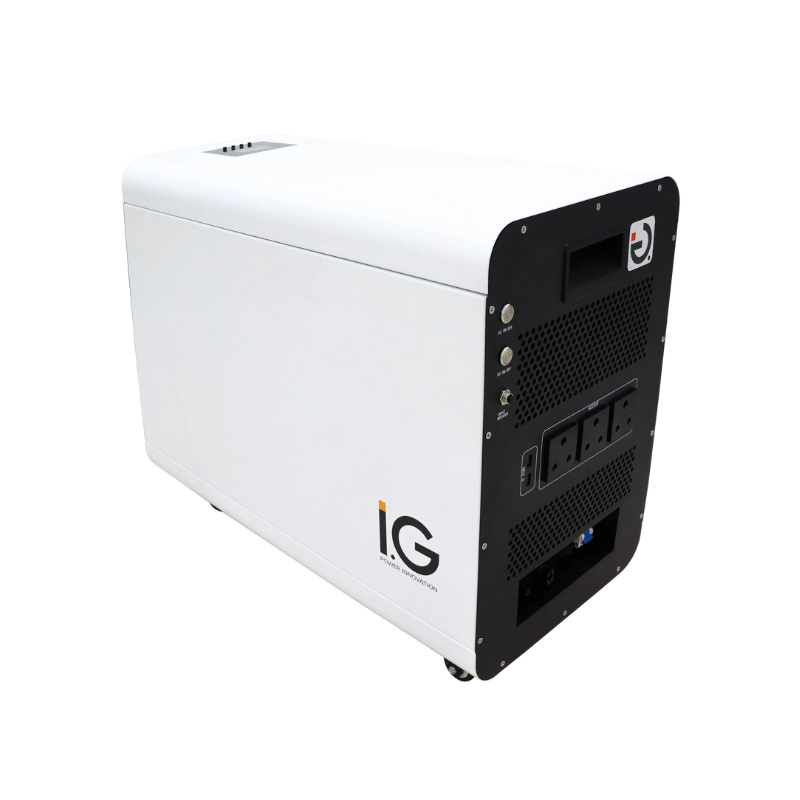

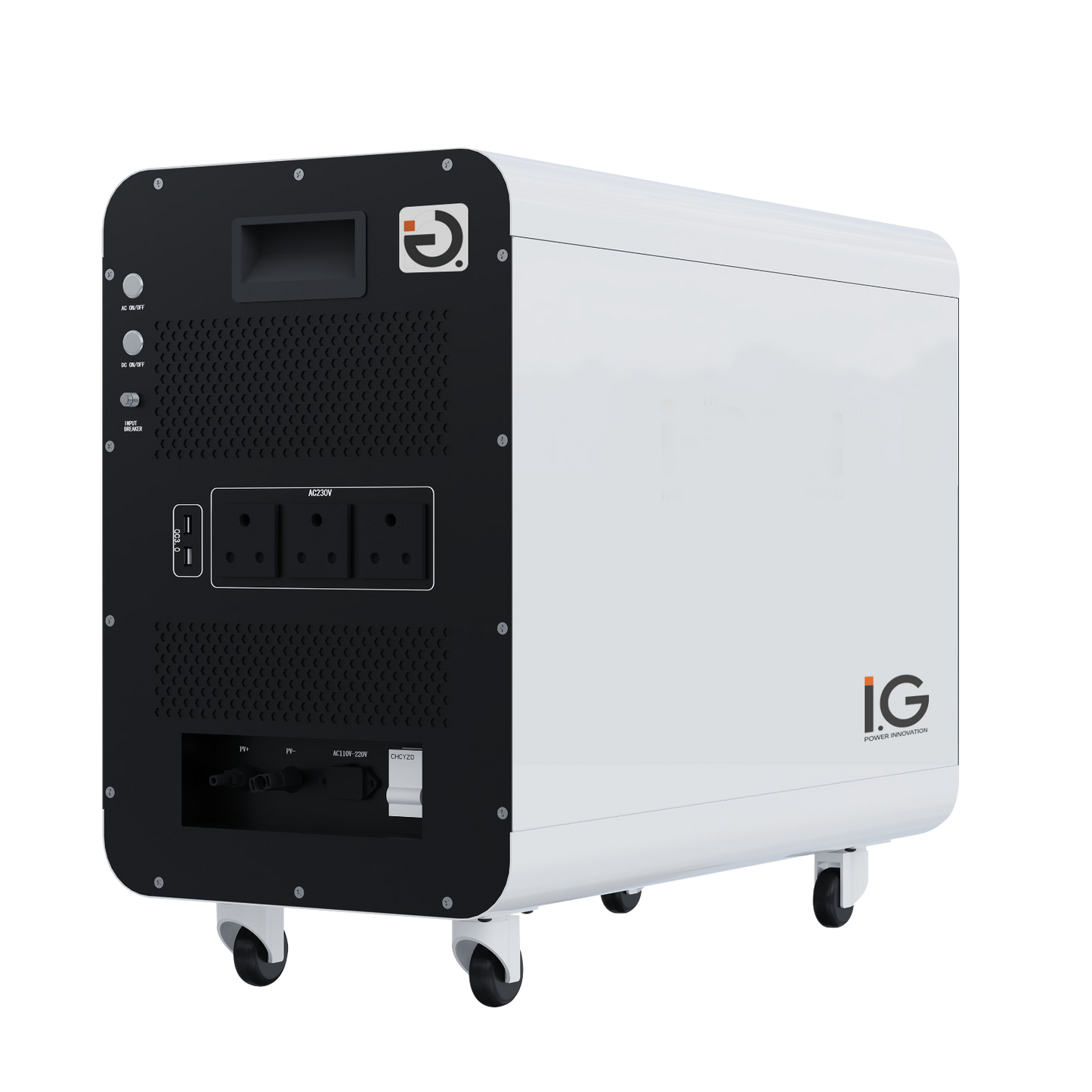

I-G3N Power-Nexus All-in-One Solar Energy Storage System

The Power-Nexus is an advanced, all-in-one solar energy storage solution, designed to provide reliable, uninterrupted power for both residential and commercial applications. Combining a premium lithium-ion phosphate (LiFePO4) battery with an efficient inverter, this mobile energy system is equipped with 5kWh backup storage and offers a complete solution for managing power from various sources, including the grid, solar panels, and generators. Its plug-and-play design, mobile setup, and user-friendly interface make it an ideal choice for sustainable, on-demand energy storage.

Key features:

• All-in-one energy solution: Integrates solar energy storage, battery, and inverter in one compact system, simplifying energy management for residential and commercial users.

• Premium LiFePO4 battery: Powered by a lithium-ion phosphate battery with 5.12kWh energy capacity, offering a longer cycle life and improved safety.

• Mobile & plug-and-play: Designed for mobility and ease of use, the Power-Nexus can be easily transported and installed, requiring minimal setup for seamless operation.

• High output & efficiency: With a rated output power of 3kW and maximum peak power of 6kVA, the system ensures efficient energy supply for critical loads, offering inverter efficiency of up to 92%.

• Reliable backup power: Equipped with 5kWh backup storage, the Power-Nexus is perfect for preventing power disruptions, ensuring an uninterrupted energy supply during outages.

• Comprehensive protection: Integrated with a smart battery management system (BMS) for protection against overcharging, overdischarging, overcurrent, short circuits, and overheating.

• Multiple output ports: Offers multiple output ports, including three South Africa AC sockets, one AC input port, MC4 connectors for PV input, and dual USB ports for DC output, making it highly versatile for different power needs.

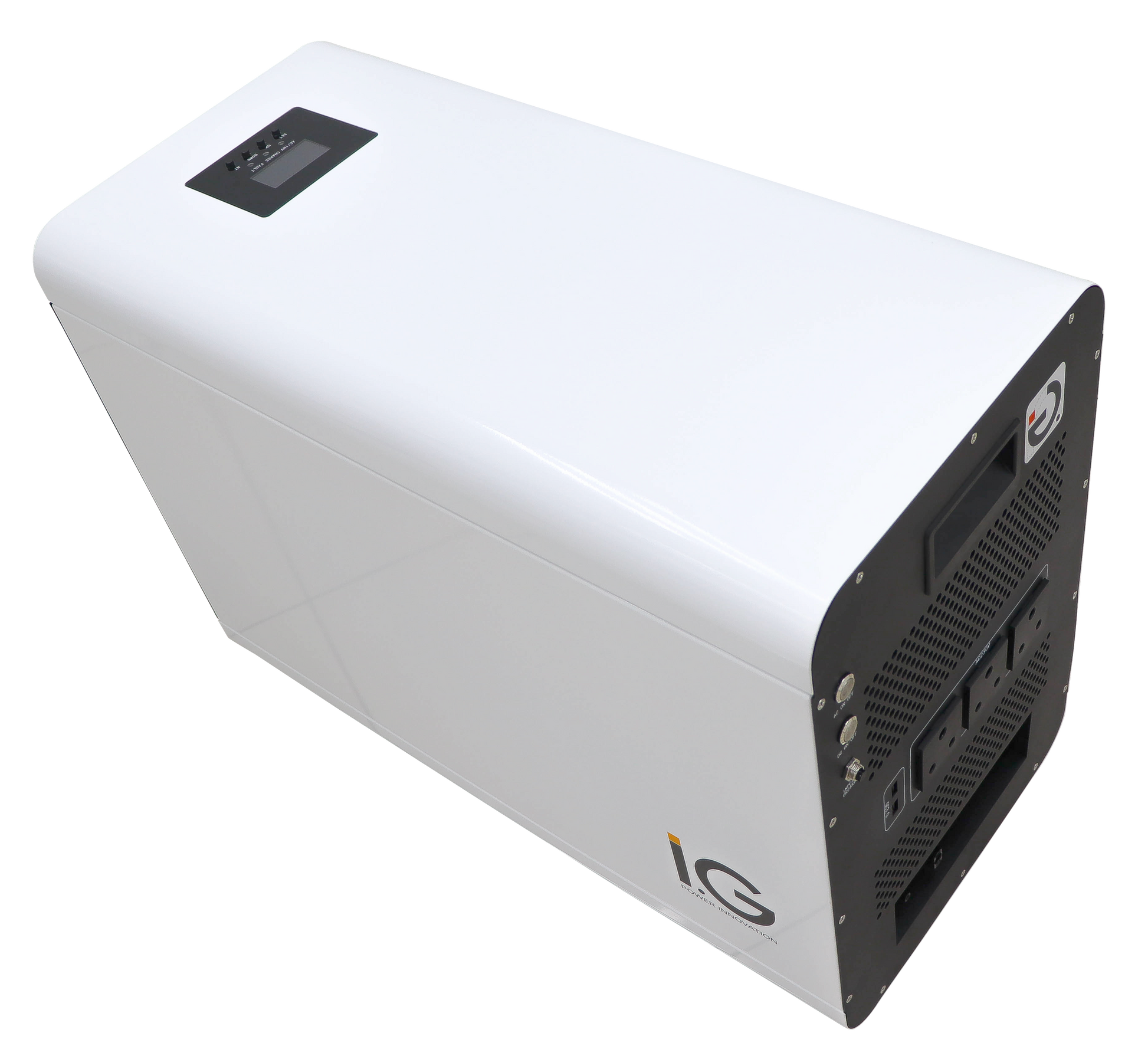

• LCD display & monitoring: Features an LCD display for easy monitoring of system parameters, providing real-time information on performance and battery status.

Specifications:

• Model: Power-Nexus
• Dimensions (L-W-H): 710mm x 339mm x 581mm
• Weight: 66kg
• Nominal voltage: 51.2V
• Nominal capacity: 100Ah
• Nominal energy: 5120Wh
• Operating voltage: 48V ~ 56V
• AC output voltage: 230V (Single Phase)
• Rated output power: 3kW
• Peak power: 6kVA
• Inverter efficiency: 92%
• Operating temperature: Charge: 0°C to 45°C, Discharge: -10°C to 55°C
• Cycle life: ≥4000 cycles @ 80% DoD, 0.5C & 25°C
• AC output ports: 3x South Africa sockets
• USB output ports: 2x 5V 2A
• MPPT voltage range: 60V ~ 145Vdc
• Transfer time (UPS): 10ms (Typical)

The Power-Nexus is an ideal solar energy storage system for homes and businesses seeking a reliable, mobile, and efficient power solution. With its premium LiFePO4 battery, integrated inverter, and intelligent BMS, it provides long-lasting energy storage and protection. The all-in-one design makes it simple to install, while the mobile setup ensures flexibility in deployment. From backup power to continuous energy management, the Power-Nexus meets modern energy demands with precision and reliability.
