TBB | Inverter

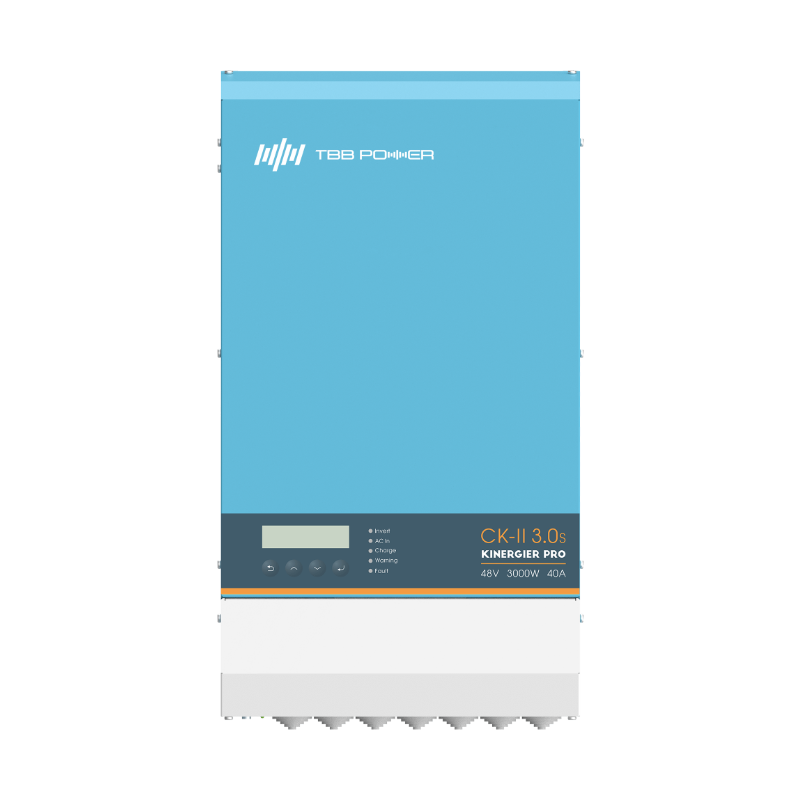

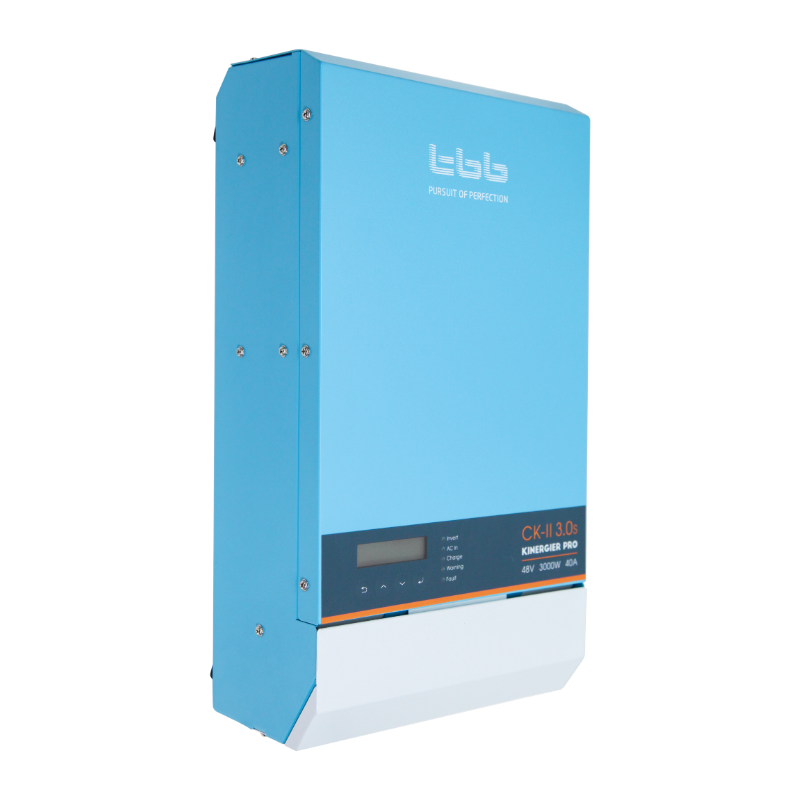

TBB Kinergier Pro CK II 3KW Off-Grid Inverter

TBB Kinergier Pro CK II 3KW Off-Grid Inverter

Kinergier Pro is the new generation bi-directional inverter designed for various types of off-grid systems including AC coupling system, DC coupling system and generator hybrid system. It can provide UPS class switching speed and with the capability to support parallel as well as composing three-phase systems.

Kinergier Pro delivers high reliability, performance, and industry-leading efficiency for mission-critical applications. Its distinguishing surge capability makes it capable of powering most demanding appliances, such as an air conditioner, water pump, washing machine, freezer etc.

With the function of power assist & power control, it can be used to work with a limited AC source such as a generator or limited grid. Kinergier Pro can automatically adjust its charging current to avoid the grid or generator being overloaded. In case of temporary peak power appears, it can work as the supplement source to the generator or grid.

Features:

Type of Inverter: Three-phase, Transformer based, bi-directional off-grid inverter

Grid-tie / Off-grid: Off-grid

Voltage: 48V

Max. AC Output: 3 KW (30 min)

Max. Output Current: 32 (Auxiliary Output / Main Output)

Max. AC Charge Current: 40 A

Max. efficiency: 95 %

Weight: 19 kg

Dimensions: 490 x 268 x 145 mm

Protection: output short circuit, overload, high battery voltage, low battery voltage, high temperature, input voltage out of range, input voltage current too high, fan block.
View full details
Scroll destination

Product Description

Kinergier Pro is the new generation bi-directional inverter designed for various types of off-grid systems including AC coupling system, DC coupling system and generator hybrid system. It can provide UPS class switching speed and with the capability to support parallel as well as composing three-phase systems.

Kinergier Pro delivers high reliability, performance, and industry-leading efficiency for mission-critical applications. Its distinguishing surge capability makes it capable of powering most demanding appliances, such as an air conditioner, water pump, washing machine, freezer etc.

With the function of power assist & power control, it can be used to work with a limited AC source such as a generator or limited grid. Kinergier Pro can automatically adjust its charging current to avoid the grid or generator being overloaded. In case of temporary peak power appears, it can work as the supplement source to the generator or grid.

Features:

Type of Inverter: Three-phase, Transformer based, bi-directional off-grid inverter

Grid-tie / Off-grid: Off-grid

Voltage: 48V

Max. AC Output: 3 KW (30 min)

Max. Output Current: 32 (Auxiliary Output / Main Output)

Max. AC Charge Current: 40 A

Max. efficiency: 95 %

Weight: 19 kg

Dimensions: 490 x 268 x 145 mm

Protection: output short circuit, overload, high battery voltage, low battery voltage, high temperature, input voltage out of range, input voltage current too high, fan block.

Data Sheets

Kinergier_Pro_en_1.pdf

Financing

For all products tagged 'Balance on Arrival' we offer the option to make a 15% deposit at the time you place the order, with the balance due on arrival in Nigeria.

We accept local currency indexed to dollar value.

Learn more

Delivery

For 'Balance on Arrival' orders, anticipated timelines are around 2.5 - 4 months for sea travel or ~3-4 weeks for air travel.

Require CCI and other import documentation? Contact us to learn more.

Warranty

2 Years warranty
