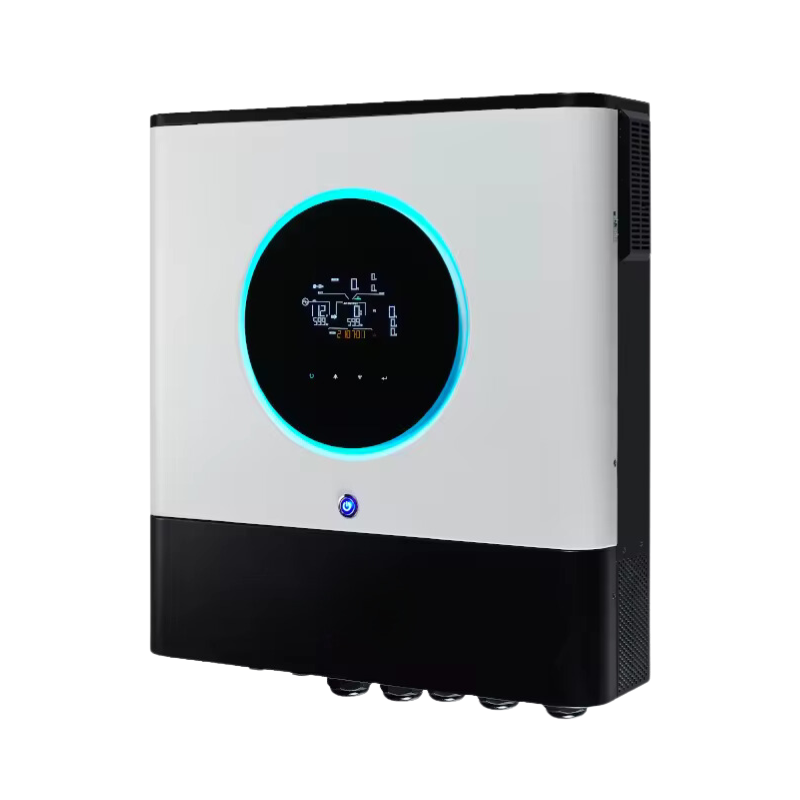

Voltronic Axpert Max Twin 8kW Inverter

Voltronic Axpert Max Twin 8kW Inverter

 Voltronic Axpert MAX II TWIN is the new fourth generation 8000W and 48V solar inverter. This new equipment includes new techniques, this new model incorporates a Wi-Fi function, this allows you to carry out monitoring from your mobile through the mobile application.

The inverter comes with UBS On-the-Go function for easy rewriting of internal parameters, data downloads, and software updates. The battery independent design enhances this inverter to function without a battery connected.

Features:

  • Dual outputs, for smart load management
  • Maximum PV input current increases to 27A
  • Wide PV input voltage range 90VDC ~ 450VDC
  • Status indication with GB lights
  • Built-in Wi-Fi for mobile monitoring (Android/iOS App is available)
  • Supports USB On-the-Go function
  • Reserved communication port for BMS (R$485, CAN-BUS or RS232)
  • Replaceable fan design for ease of maintenance
  • Battery independent design
  • Selectable high power charging current
  • Compatible to Utility Mains or generator input
  • Built-in anti-dust kit
  • Optional DC output for DC fan, LED bulb, router and so on (only for 8K model)
  • Parallel operation with 6 units
  • Dimensions: 158,4 x 502,5 x 530,8m
  • Weight: 20kg
View full details
Scroll destination

Product Description

 Voltronic Axpert MAX II TWIN is the new fourth generation 8000W and 48V solar inverter. This new equipment includes new techniques, this new model incorporates a Wi-Fi function, this allows you to carry out monitoring from your mobile through the mobile application.

The inverter comes with UBS On-the-Go function for easy rewriting of internal parameters, data downloads, and software updates. The battery independent design enhances this inverter to function without a battery connected.

Features:

  • Dual outputs, for smart load management
  • Maximum PV input current increases to 27A
  • Wide PV input voltage range 90VDC ~ 450VDC
  • Status indication with GB lights
  • Built-in Wi-Fi for mobile monitoring (Android/iOS App is available)
  • Supports USB On-the-Go function
  • Reserved communication port for BMS (R$485, CAN-BUS or RS232)
  • Replaceable fan design for ease of maintenance
  • Battery independent design
  • Selectable high power charging current
  • Compatible to Utility Mains or generator input
  • Built-in anti-dust kit
  • Optional DC output for DC fan, LED bulb, router and so on (only for 8K model)
  • Parallel operation with 6 units
  • Dimensions: 158,4 x 502,5 x 530,8m
  • Weight: 20kg

Data Sheets

Financing

For all products tagged 'Balance on Arrival' we offer the option to make a 15% deposit at the time you place the order, with the balance due on arrival.

We accept local currency indexed to dollar value.

Learn more

New Tab

Tab content

Delivery

For 'Balance on Arrival' orders, anticipated timelines are around 2.5 - 4 months for sea travel or ~3-4 weeks for air travel.

Require CCI and other import documentation? Contact us to learn more.

Warranty

5 Years warranty
